FC-Fiber-Optic-Patch-Cord
FC-Fiber-Optic-Patch-CordAminite is the supplier of FC FC,FC LC,FC SC,FC ST,FC MTRJ,FC MU,FC E2000 fiber optic patch cord and fiber optic jumpers, and also is the fiber optic jumper manufacture of MM,UPC,APC,PC,9/125,SM,50/125,simplex,duplex,single mode,multimode FC fiber patch cable, ect.
Tags: fc connector, fc fiber cable, fc patch cord, fiber jumpers, Fiber Patch CableAll of the fiber optic patch cord 100% pass 3D interferometer test.
All fiber optic jumper Connector are design according to IEC standard; Insertion loss ≤0.15dB;
Different cable diameter option: 1.6mm, 1.8mm, 2.0mm, 2.4mm, and 2.8mm are available.
OFS, Draka, Corning, YOFC optical fiber available..

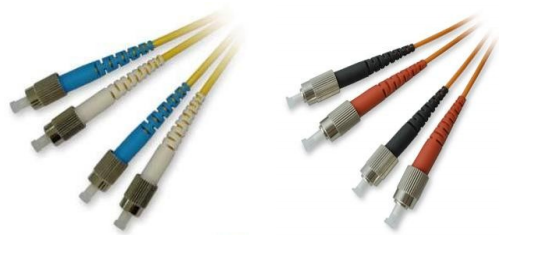

FC Fiber Patch Cord is available in both singlemode and multimode fiber patch cable versions, and is fully intermateable with NTT-FC products. Both singlemode and multimode versions FC fiber patch calbe come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end. These endface types allow for faster polishing, and low back reflection and optical loss,while ensuring maximum repeatability.
- Application
- Telecommunication System
- Testing Facility
- CATV System
- Long-haul Telecommunication
- LAN System
- Features
- PC,UPC,APC polishing available
- High Return Loss
- Low Insertion Loss
- High Reliability and Stability
- Available for single mode / multimode and simplex / duplex
- 0.9mm ,2.0mm,3.0mm diameter cable available
- Compliance
- Compliant with : IEC-61754-20
- Compliant with : Tecordia-GR-326-CORE
- Compliant with : RoHS
- Specification
| Fiber Mode | SM
（G652D/G657A1/G657A2） |
MM
(OM1/OM2/OM3/OM3/OM4) |
||
| Connector Type | FC Fiber Optic Patch Cord | |||
| Diameter (mm) | 0.9mm / 1.8mm/ 2.0mm / 3.0mm… | |||
| End-face Finishing | PC | UPC | APC | PC |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Exchangeability (dB) | ≤0.20 | |||
| Repeatability (dB) | ≤0.20 | |||
| Operating Temperature(℃) | -40 ~ + 75 | |||
| Storage Temperature (℃) | -40 ~ + 85 | |||
| Operating Wavelength(um) | 1310,1550 | 850 | ||
| Cable material | PVC, LSZH | |||
Note: Contact our engineers for the parameter of high precision patchcords.
- Cable
| Lemvigh-Müller Normal | 0.9mm | 1.8mm | 2.0mm | 3.0mm |
| SM | White | Yellow | ||
| MM | White | Orange | ||
| OM3 | Aqua | |||
| OM4 | Violet | |||
Note：
Ⅰ. All cable are LSZH. PVC or other material for option.
Ⅱ. 12 colors would be available. (Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua)
Ⅲ. The other OD requirement could be discussed.
