LC-Fiber-Optic-Patch-Cord-1Aminite supply LC Fiber Optic Patch Cord and LC fiber patch cables, including single mode 9/125 and multimode 50/125,multimode 62.5/125, LC LC,LC SC,LC ST,LC MU,LC MTRJ,LC MPO,LC E2000,LC FC. Other LC fiber patch cable types also available for custom design. Excellent quality and fast delivery.
Tags: fiber jumpers, lc connector, lc fiber cable, lc patch cordAll of the fiber optic patch cord 100% pass 3D interferometer test.
All fiber optic jumper Connector are design according to IEC standard; Insertion loss ≤0.15dB
Different cable diameter option: 1.6mm, 1.8mm, 2.0mm, 2.4mm, and 2.8mm are available.
OFS, Draka, Corning, YOFC optical fiber available.

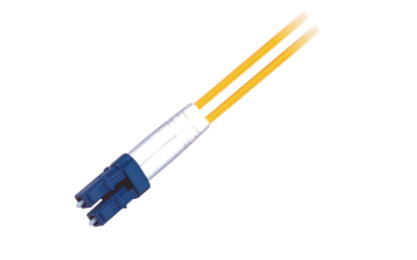

The LC fiber patch cord is with a small form factor (SFF) connector and is ideal for high density applications.The LC fiber patch calbe connector has a zirconia ceramic ferrule measuring 1.25mm O.D. with either a PC or APC endface, and provides optimum insertion and return loss.The LC fiber patch cable connector is used on small diameter mini-cordage (1.6mm/2.0mm) as well as 3.0mm cable. LC fiber cable connectors are available in cable assembled or one piece connectors. The LC fiber optic assemblies family is Telcordia, ANSI/EIA/TIA and IEC compliant.
- Application
- Telecommunication System
- Testing Facility
- CATV System
- Long-haul Telecommunication
- LAN System
- Features
- PC,UPC,APC polishing available
- High Return Loss
- Low Insertion Loss
- High Reliability and Stability
- Available for single mode / multimode and simplex / duplex
- 0.9mm ,2.0mm,3.0mm diameter cable available
- Compliance
- Compliant with : IEC-61754-20
- Compliant with : Tecordia-GR-326-CORE
- Compliant with : RoHS
- Specification
| Fiber Mode | SM
（G652D/G657A1/G657A2） |
MM
(OM1/OM2/OM3/OM3/OM4) |
||
| Connector Type | LC fiber optic patch cord | |||
| Diameter (mm) | 0.9mm / 1.8mm/ 2.0mm / 3.0mm… | |||
| End-face Finishing | PC | UPC | APC | PC |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Exchangeability (dB) | ≤0.20 | |||
| Repeatability (dB) | ≤0.20 | |||
| Operating Temperature(℃) | -40 ~ + 75 | |||
| Storage Temperature (℃) | -40 ~ + 85 | |||
| Operating Wavelength(um) | 1310,1550 | 850 | ||
| Cable material | PVC, LSZH | |||
Note: Contact our engineers for the parameter of high precision patchcords.
- Cable
| Lemvigh-Müller Normal | 0.9mm | 1.8mm | 2.0mm | 3.0mm |
| SM | White | Yellow | ||
| MM | White | Orange | ||
| OM3 | Aqua | |||
| OM4 | Violet | |||
Note：
Ⅰ. All cable are LSZH. PVC or other material for option.
Ⅱ. 12 colors would be available. (Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua)
Ⅲ. The other OD requirement could be discussed.
- Dimensions
- Types
Include LC/PC SM SX Connector, LC/PC MM SX Connector, LC/APC SM SX Connector, LC/PC SM DX Connector, LC/PC MM DX Connector, LC/APC MM DX Connector, LC/PC MM DX Connector (Uniboot), LC/APC MM SX Connector (angle) and so on
