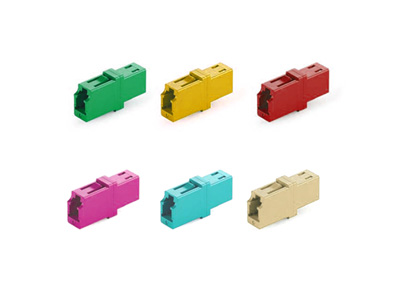

LC UPC to LC UPC Simplex Fiber Optic Adapter
LC&UPC-Simplex-Adapter
LC&UPC-Simplex-AdapterAminite supply the LC/UPC to LC/UPC Simplex Fiber Optic Adapter, This LC to LC adapter is used for a cable to cable fiber optic connection or cable to equipment fiber optic connection. They are widely used in the fiber optic links.
Tags: lc adapter, lc lc, lc to lc adapter, lc upc, simplex Adapter
LC/UPC to LC/UPC Simplex Fiber Optic Adapter
The LC adapters are designed for mounting in panels with rectangular cutouts. These LC adapters have high precision alignment and high precision sleeve so the feature bronze or ceramic alignment sleeves which provide precision mating for both Multimode and Single Mode applications.This LC to LC adapter is usually used for a cable to cable fiber optic connection or cable to equipment fiber optical connection.
- Application
- Gigabit ethernet
- Video
- CATV
- Active device/Transceiver interface
- Telecommunication networks
- Metro networks
- Premise installations
- Multimedia
- Industrial and military
- Features
- LC/UPC adapter Type
- Compact design
- Color coding & polarization
- High precision alignment and High precision sleeve
- High performance
- Low insertion and return loss and back reflection
- With or without flange options for installation flexibility
- RoHS compliant
- Compliance
- IEC60B74-14;F04 (JIS C5973);FOCIS-3;TIA/EIA-604-3A;
- Telcordia, ANSI, TIA/EIA, and ISO compliance
- UL94 V-0 rated plastic housing or metal housings available
- Specification
| SPECIFICATION | Zirconia SLEEVE | Phosohor Bronze Sleeve |
| Insertion Loss | Typical≤0.05dB,Max≤0.2dB | Typical≤0.1dB,Max≤0.3dB |
| Durability | ＜0.1dB Typical change,500 matings | |
| Note:Zirconia tested with SMF Fiber,Phosphor Bronze sleeve tested with MMF | ||
- Sleeves
- Zirconia Sleeves Adapters
- Phosphor Bronze Adapter Sleeve
- Images
LC UPC to LC UPC Simplex Fiber Optic Adapter
