MPO Cassette modules Fiber Optic Connector

Aminite offers a valiety of MPO Cassette modules Fiber Optic Connector for  MPO network components and systems. These MPO Cassette modules Suitable for MPO/MTP application,with 12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts,Our MPO Connector Marketing Positioning:70% for overseas ICT market; 30% domestic market for supplemen;.

The singlemode or multimode MPO connector are multifiber connections used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.

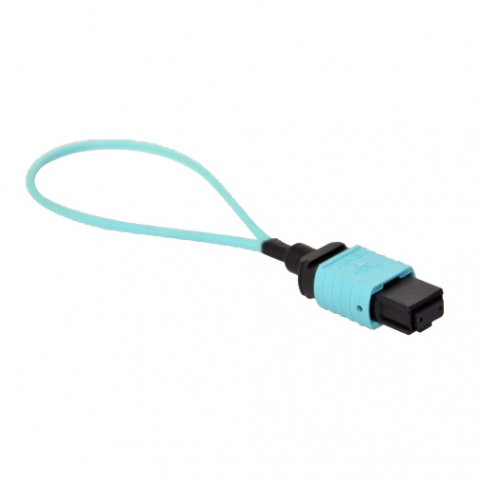

MPO fiber connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO fiber cables are packaged in a rugged, compact housing for the highest density available for these applications. MPO loopbacks standard products include a female MPO interface 12-fiber with 8-fiber (QSFP) option or 100G, singlemode or multimode versions. Our compact and rugged housing design provides high stability, reliability, and repeatability.

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.

Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes.  can be mounted in 1U or 2U 19″ multislot chassis.

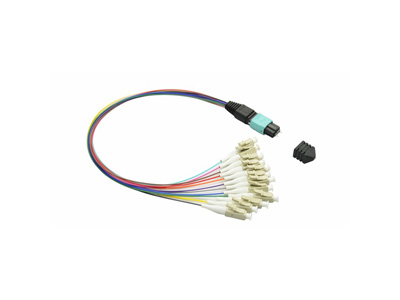

MPO Cassettes  contain factory controlled and tested MPO-LC  fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

Features:

◆ Suitable for MPO/MTP application

◆ High-density and small design;Easy and fast installation

◆ 12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts

◆ Available Multimode (62.5/125, Standard 50/125 and OM3、OM4) and Single mode（OS1/2） fiber.

◆ Factory-terminated and -tested cable and apparatus for instant   field connections  with guaranteed quality and performance

◆ Metallic shell with high strength protect the inner fibers effectively

◆ Supports easy reconfiguration for moves, adds, and changes

Application:

◆ Data Centre Infrastructure

◆ Storage Area Network-Fiber Channel

◆ Emerging 40 & 100Gps Protocols

Technical Specification:

Assembly Structure Illustration：
