MPO Loopback Assemblies Fiber Optic Connector

Aminite offers a line of MPO Loopback Assemblies Fiber Optic Connector for burn-in and testing of MPO network components and systems. These MPO Loopback Assemblies connector are used to effectively test transmitter capability and receiver sensitivity, particularly for telecom and datacom requirements.



The singlemode or multimode MPO connector are multifiber connections used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.

MPO fiber connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO fiber cables are packaged in a rugged, compact housing for the highest density available for these applications. MPO loopbacks standard products include a female MPO interface 12-fiber with 8-fiber (QSFP) option or 100G, singlemode or multimode versions. Our compact and rugged housing design provides high stability, reliability, and repeatability.

Aminite supply a lot of Variety, High Quality and Good Price MPO Loopback Assemblies Fiber Optic Connector.

1. Application

• Enterprise
• Network Components
• Patch cords and Fan-Out assemblies
• ATM & DWDM high speed communication systems
• Multimedia
• CATV and Video
• Data and Telecommunication Networks
• Industrial

2. Features

• Compact and Rugged Design
• MPO 12-Fiber or 24-Fiber Ferrule
• High Stability and Reliability
• Precision molded MT ferrules
• With metal guide pins and precise housing dimensions

3. Compliance

• IEC 61754-7
• TIA/EIA 604-5A

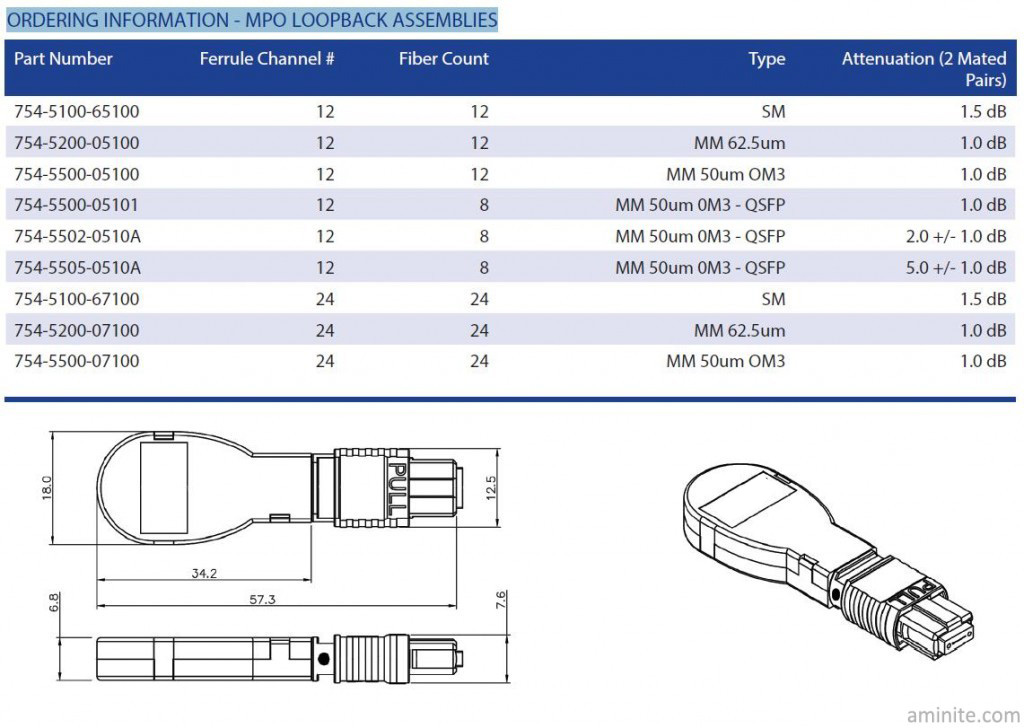

4. Specification

5. Images
