MPO Patch Panel Fiber Optic Connector

Aminite offers a line of MPO Patch Panel  Fiber Optic Connector for burn-in and testing of MPO network components and systems. These MPO Loopback Assemblies connector are used to effectively test transmitter capability and receiver sensitivity, particularly for telecom and datacom requirements.

The singlemode or multimode MPO connector are multifiber connections used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.

MPO fiber connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO fiber cables are packaged in a rugged, compact housing for the highest density available for these applications. MPO loopbacks standard products include a female MPO interface 12-fiber with 8-fiber (QSFP) option or 100G, singlemode or multimode versions. Our compact and rugged housing design provides high stability, reliability, and repeatability.

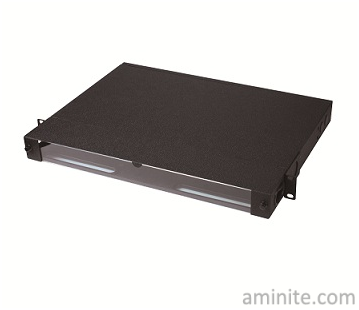

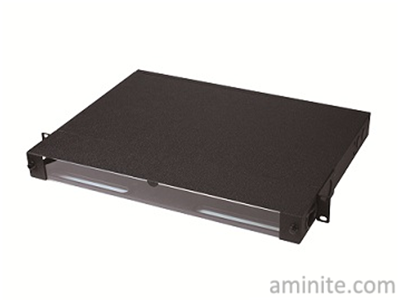

MPO Fiber Optic Patch Panel is used for trunk cable connection and distribution cable management in distribution area of MDA, IDA or HDA data centers. It could be installed in 19 inch racks and cabinets. It could accommodate MPO cassette modules or MPO adapter panels.

Application:
Machine rooms of data center and intranet

Feature:

1、Could install in 19 inch racks and cabinets, manage MPO cassette modules

2、Modular design realizes high port number and improves high density connection capabilities

3、1U MPO Fiber Optic Patch Panel can accommodate 4pcs of MPO cassette modules. MPO cassette modules can install duplex LC adapters with the capacity  up to 96 fibers maximum, simplex SC adapters with the capacity up  to 48 fibers maximum and MPO adapters with the capacity up to 288 fibers maximum.

4、2U MPO Fiber Optic Patch Panel can accommodate 8pcs of MPO cassette modules. MPO cassette modules can install duplex LC adapters with the capacity  up to 192 fibers maximum, simplex SC adapters up  to 96 fibers maximum and MPO adapters up to 576 fibers maximum.

5、3U MPO Fiber Optic Patch Panel can accommodate 12pcs of MPO cassette modules. MPO cassette modules can install duplex LC adapters with the capacity  up to 288 fibers maximum, simplex SC adapters up  to 144 fibers maximum and MPO adapters up to 864 fibers maximum.

6、Made of premium cold rolled steel

7、The steel is processed by degreasing, pickling, Rustproof phosphating, cleaning with water, and electrostatic spraying. The thickness of spraying is 80um~100um. European RoHS compliant

8、MPO Patch Panel includes cable management and labels

9、Convenient installation and easy management

10、 The density is more than 4 times of traditional splicing patch panels. It saves much room of cabinets, improves use ratio of cabinets, and creates value of data center construction.

11、Modular design is easy for upgrade and maintenance.

12、Include 1U/2U/3U cable management design
