SC-ST-Duplex-Adapter-with-Rectangular-Flange-Metal
SC-ST-Duplex-Adapter-with-Rectangular-Flange-MetalAminite supply the SC-ST Duplex Hybrid Adapter with Rectangular Flange Metal, These hybrid adapters are single mode and multimode types, with PC or APC sleeves, in simplex and duplex style. They are widely used in the fiber optic links.
Tags: duplex Adapter, fibre adapter, Flange adapter, Metal adapter, sc st, SC to ST Adapter
The SC to ST Duplex Hybrid Adapter with Rectangular Flange Metal offer a solution for hybrid applications where the two different kinds of fiber optic connectors or cable assemblies need to be linked with each other. Most of the hybrid fiber adapters use high precision ceramic sleeves which enable reliable ferrule mating and ensure low insertion loss and return loss during the linking.
- Application
- Network environments integrating different configurations
- Telecommunication networks
- Features
- High-precision sleeve
- Compact design
- High performance
- Ultra low insertion loss
- With or without flange options for installation flexibility
- RoHS compliant
- Compliance
- IEC60B74-14;F04 (JIS C5973);FOCIS-3;TIA/EIA-604-3A;
- Telcordia GR-326-4 CORE Compliant
- UL94 V-0 rated plastic housing or metal housings available
- Specification
| SPECIFICATION | Zirconia SLEEVE | Phosohor Bronze Sleeve |
| Insertion Loss | Typical≤0.05dB,Max≤0.2dB | Typical≤0.1dB,Max≤0.3dB |
| Durability | ＜0.1dB Typical change,500 matings | |
| Note:Zirconia tested with SMF Fiber,Phosphor Bronze sleeve tested with MMF | ||
- Sleeves
- Zirconia Sleeves Adapters
- Phosphor Bronze Adapter Sleeve
- Images

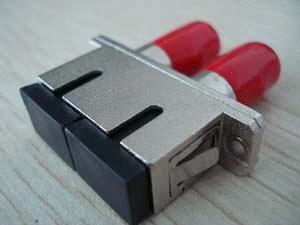

SC to ST Duplex Hybrid Adapter with Rectangular Flange Metal
